Robust support for multiple foil types

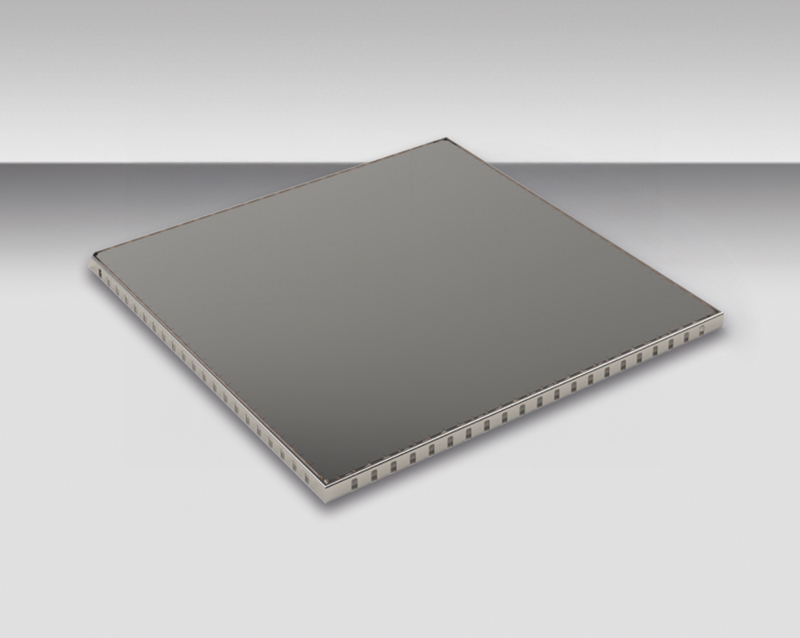

DEK PowerGuard frame is a single stream stainless steel fully automated manufactured stencil frame that fits all printing needs. This system uses advanced welding to securely fit the foil onto a preloaded high tension frame. With no need for mesh, glue or air system and any need for mechanical maintenance, DEK PowerGuard changes the game. Available in Fine grain material, with its high tension is ideal for complex SMT challenges.

Benefits:

• Consistent tension over stencil lifetime
• Fast and efficient changeover
• Well suited for standard SMT processes including ultra-fine pitch, highly miniaturized dimensions
• Space-saving with its low profile; 50% space saved vs standard mesh-mount stencils
• Larger printable area than Mesh-mount stencils
• Compatibility with all available printer brands
• Fully recyclable and sustainable frame

DEK Mesh-mounted frames are constructed of the highest-quality aluminum, providing maximum support for epoxy mounting of the polyester mesh material.

DEK Mesh-mounted stencils are available in various frame sizes for laser-cut standard stainless steel, nickel and electroformed nickel foils.

• DEK 260 23” x 23” (40 mm x 584 mm x 584 mm)
• DEK 265 29” x 29” (40 mm x 736 mm x 736 mm)
• 40 mm x 600 mm x 550 mm
• 40 mm x 650 mm x 550 mm
• Space saver 29” x 29” (10 mm x 736 mm x 736 mm)
